外丝接头

工业接头 HoseMan 低压接头

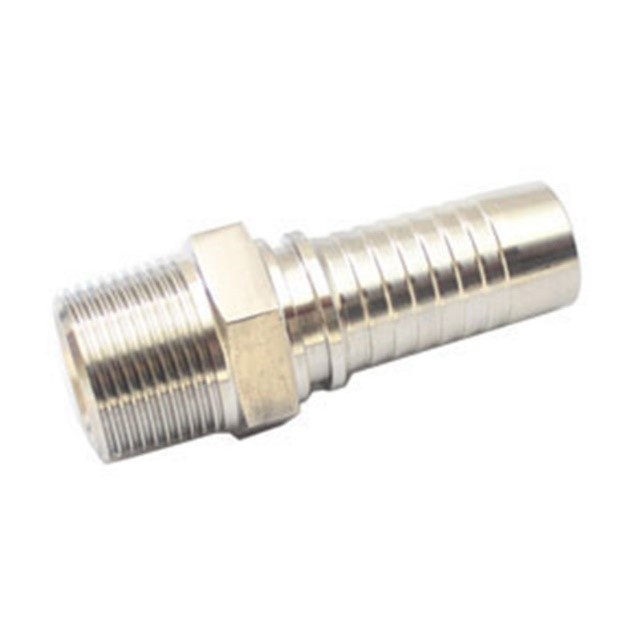

BSPT 外丝接头
型号	螺纹E	软管内径 HOSE BORE		尺寸DIMENSIONS
PART NO	THREAD E	公称内径DN	标号DASH	A	C	S1
F0-130-02-03	R1/8"X28	5	03	22	10	12
F0-130-02-04	R1/8"X28	6	04	22.5	10	12
F0-130-04-04	R1/4"X19	6	04	27	14.5	14
F0-130-04-05	R1/4"X19	8	05	25	15.4	14
F0-130-04-06	R1/4"X19	10	06	27	14.5	17
F0-130-06-04	R3/8"X19	6	04	27.5	15	17
F0-130-06-05	R3/8"X19	8	05	26.5	15	17
F0-130-06-06	R3/8"X19	10	06	27.5	15	17
F0-130-06-08	R3/8"X19	12	08	30	15	19
F0-130-08-06	R1/2"X14	10	06	34.5	20	22
F0-130-08-08	R1/2"X14	12	08	35	20	22
F0-130-08-10	R1/2"X14	6	10	38	20	22
F0-130-08-12	R1/2"X14	20	12	38	20	27
F0-130-12-08	R3/4"X14	12	08	37	20	27
F0-130-12-10	R3/4"X14	16	10	38	20	27
F0-130-12-12	R3/4"X14	20	12	38.5	20	27
F0-130-12-16	R3/4"X14	25	16	39.5	20	32
F0-130-16-12	R1"X11	20	12	44	25.5	36
F0-130-16-16	R1"X11	25	16	45	25.5	36
F0-130-20-20	R1.1/4"X14	32	20	49.5	26.5	46
F0-130-24-24	R1.1/4"X14	40	24	51.5	26.5	50
F0-130-32-24	R1.1/2"X14	40	24	57	30	65
F0-130-32-32	R2"X14	50	32	57	30	65
注：如需SS304材质型号为F0-130S-- , 材质可选 S：SS304 SS：SS316 C：碳钢

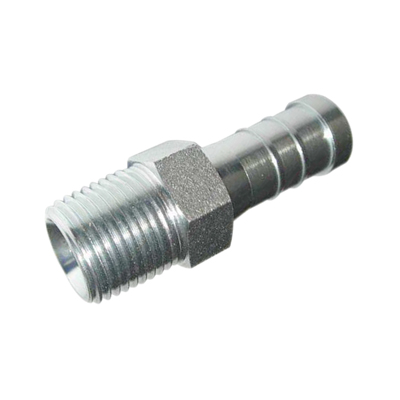

NPT外丝接头
型号	螺纹E	软管内径 HOSE BORE		尺寸DIMENSIONS
PART NO	THREAD E	公称内径DN	标号DASH	A	C	S1
F0-156S-02-03	Z1/8"X27	5	03	22.5	10.5	12
F0-156S-02-04	Z1/8"X27	6	04	22.5	10.5	12
F0-156S-04-03	Z1/4"X18	5	03	27.5	15	17
F0-156S-04-04	Z1/4"X18	6	04	28	15	17
F0-156S-04-05	Z1/4"X18	8	05	28	15	17
F0-156S-04-06	Z1/4"X18	10	06	27	15	17
F0-156S-06-04	Z3/8"X18	6	04	28	16	19
F0-156S-06-05	Z3/8"X18	8	05	28	16	19
F0-156S-06-06	Z3/8"X18	10	06	30	16	19
F0-156S-06-08	Z3/8"X18	12	08	30.5	16	19
F0-156S-08-06	Z1/2"X14	10	06	34.5	19.5	22
F0-156S-08-08	Z1/2"X14	12	08	34.5	19.5	22
F0-156S-08-10	Z1/2"X14	16	10	36	19.5	22
F0-156S-12-08	Z3/4"X14	12	08	37.5	19.5	27
F0-156S-12-10	Z3/4"X14	16	10	38	19.5	27
F0-156S-12-12	Z3/4"X14	20	12	38.5	19.5	27
F0-156S-12-16	Z3/4"X14	25	16	39.5	19.5	32
F0-156S-16-10	Z1"X11.5	16	10	45	25.5	36
F0-156S-16-12	Z1"X11.5	20	12	45	25.5	36
F0-156S-16-16	Z1"X11.5	25	16	44.5	25.5	36
F0-156S-20-16	Z1.14"X11.5	25	16	49.5	26.5	46
F0-156S-20-20	Z1.14"X11.5	32	20	49	26.5	46
F0-156S-24-24	Z1.12"X11.5	40	24	51	27.5	50
F0-156S-32-32	Z2"X11.5	50	32	55	27.5	65
注：如需SS316材质编码为F0-156SS-xx-xx , 材质可选 S：SS304 SS：SS316 C：碳钢

G螺纹外丝接头
型号	螺纹E	软管内径 HOSE BORE		尺寸DIMENSIONS
PART NO	THREAD E	公称内径DN	标号DASH	A	C	S1
F0-126S-02-03	G1/8"X28	5	03	22	10	12
F0-126S-04-04	G1/4"X19	6	04	24.5	12	14
F0-126S-06-05	G3/8"X19	8	05	26	13.5	17
F0-126S-06-06	G3/8"X19	10	06	27.5	13.5	17
F0-126S-06-08	G3/8"X19	12	08	26.5	16	19
F0-126S-08-06	G1/2"X14	10	06	30.5	16	22
F0-126S-08-08	G1/2"X14	12	08	31	17.5	22
F0-126S-10-08	G5/8"X14	12	08	32.5	17.5	24
F0-126S-10-10	G5/8"X14	16	10	33.5	18.5	24
F0-126S-12-08	G3/4"X14	12	08	35.5	18.5	27
F0-126S-12-10	G3/4"X14	16	10	37	18.5	27
F0-126S-12-12	G3/4"X14	20	12	36.5	20.5	27
F0-126S-16-12	G1"X11	20	12	40.5	20.5	36
F0-126S-16-16	G1"X11	25	16	41.5	20.5	36
F0-126S-20-16	G1.1/4"X11	25	16	43.5	20.5	46
F0-126S-20-20	G1.1/4"X11	32	20	44.5	20.5	46
F0-126S-24-20	G1.1/2"X11	32	20	49	23	50
F0-126S-24-24	G1.1/2"X11	40	24	46	23	50
F0-126S-32-32	G2"X11	50	32	53.5	25.5	65
注：如需SS316材质编码为F0-126SS-xx-xx , 材质可选 S：SS304 SS：SS316 C：碳钢
